Car lifts and goods lifts
Special hydraulic lifts that move goods and vehicles safely and with extreme precision.
Typical use: Private garages, car parks and dealerships
- Capacity
- 3000 – 6000 kg
- Pit
- from 1250 mm
- Headroom
- from 3450 mm
Drive systems
Choose the drive that fits the building — every option ships pre-paired with our controllers and electronics.
Standard sizes
| Rated load | Persons | Car (W × D) | Shaft (W × D) | Door (W × H) |
|---|---|---|---|---|
| 3000 kg | — | 2300 × 4600 mm | 3200 × 5100 mm | 2200 mm |
| 3500 kg | — | 2300 × 5450 mm | 3200 × 5950 mm | 2200 mm |
| 4000 kg | — | 2500 × 5800 mm | 3400 × 6300 mm | 2400 mm |
| 4500 kg | — | 2700 × 6100 mm | 3800 × 6600 mm | 2400 mm |
| 5000 kg | — | 2900 × 6350 mm | 4000 × 6850 mm | 2500 mm |
| 6000 kg | — | 3300 × 6800 mm | 4400 × 7300 mm | 2500 mm |
A representative subset of our standard configurations. The full range and every drive variant are in our catalogue — custom sizes available on request.
The Movilift elements
The parts we design and build to measure to meet every requirement — from access control to remote monitoring and the choice of finishes that blend with the building.
Controller & electronics
Movilift controller with clear diagnostics and remote monitoring.
Movilift pushbuttons, displays and signalling.
Access & safety
Access control, positioning and safety devices to EN 81.
Monitoring software
Remote monitoring and diagnostics via our software.
The rest of the package
Depending on the drive and configuration, each lift combines Movilift's own core with subsystems from selected Italian partners.

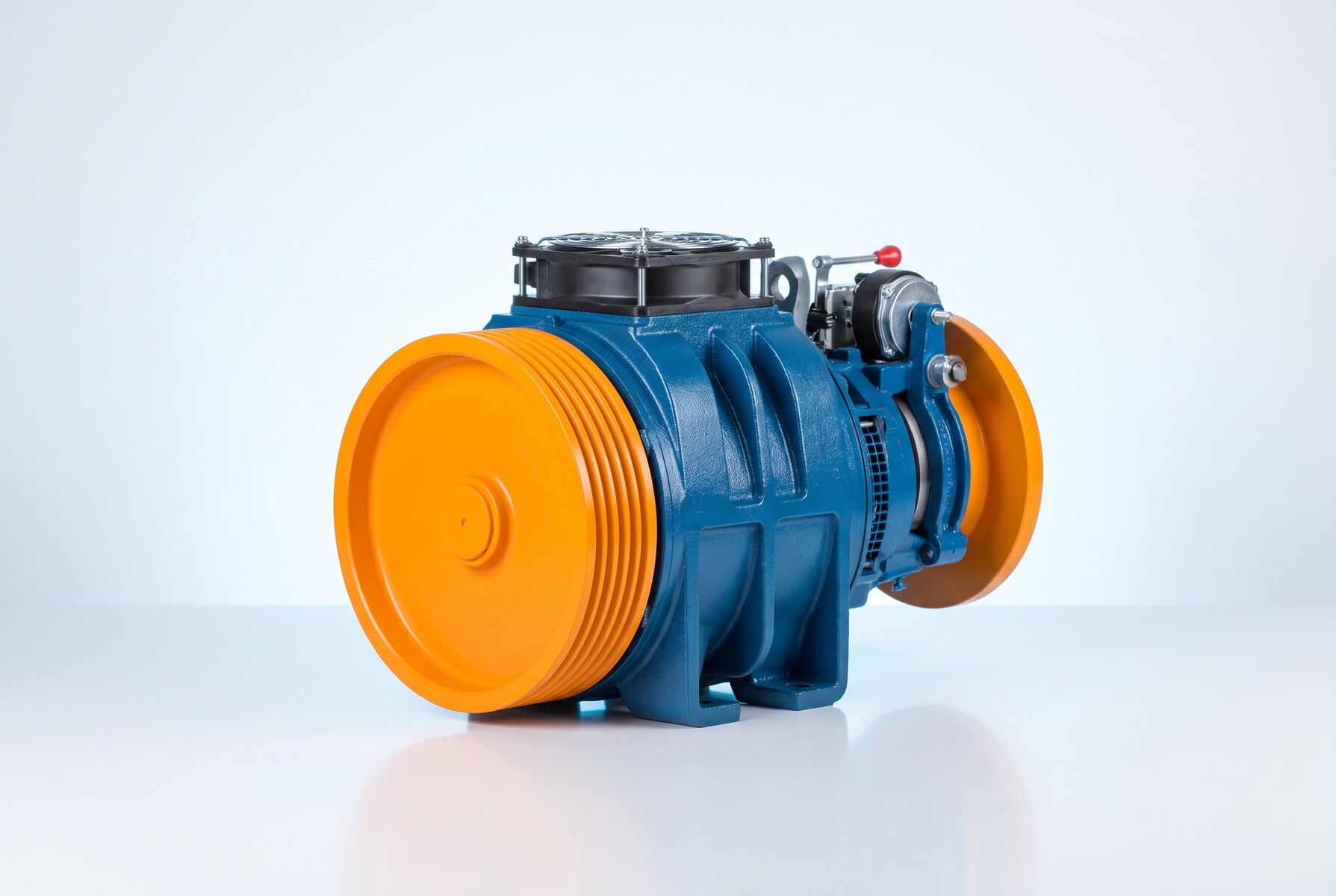

Traction machine
Gearless or geared traction machine sized to the load and travel.
Selected brand — top Italian/European

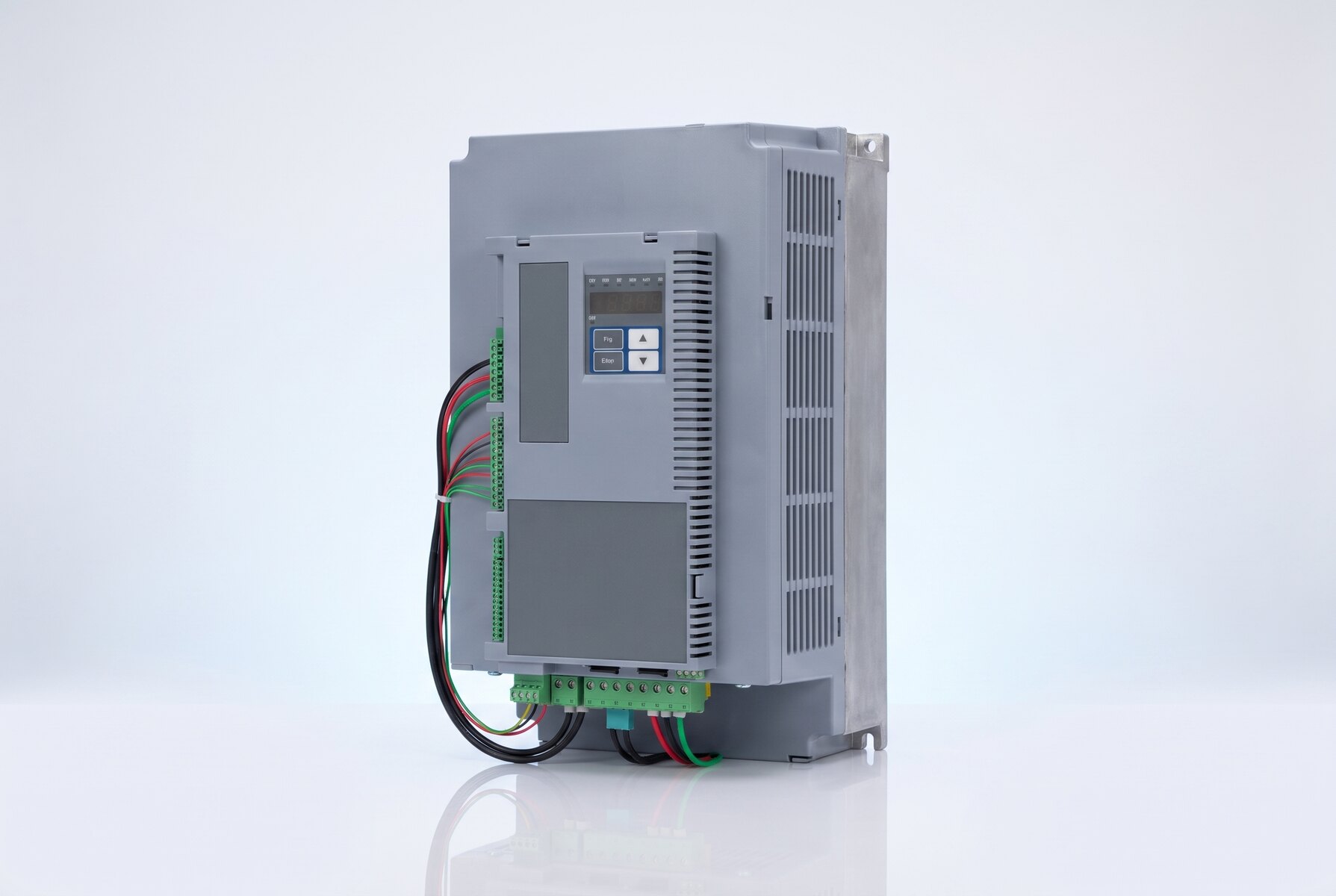

Inverter / drive
Variable-frequency drive for smooth, energy-efficient travel.
Selected brand — top Italian/European

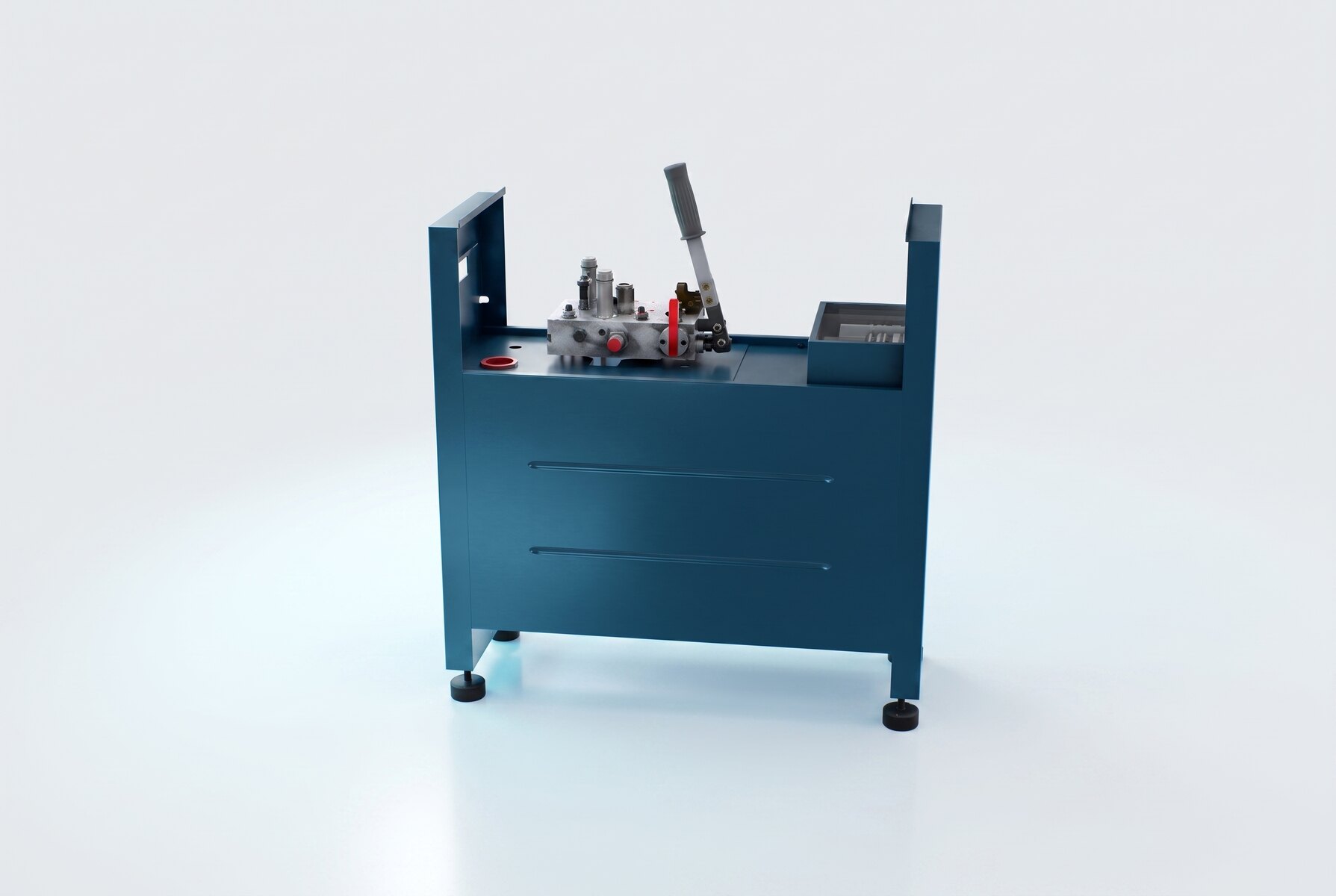

Hydraulic power unit
Hydraulic power unit with electronic valve for soft start and stop.
Selected brand — top Italian/European

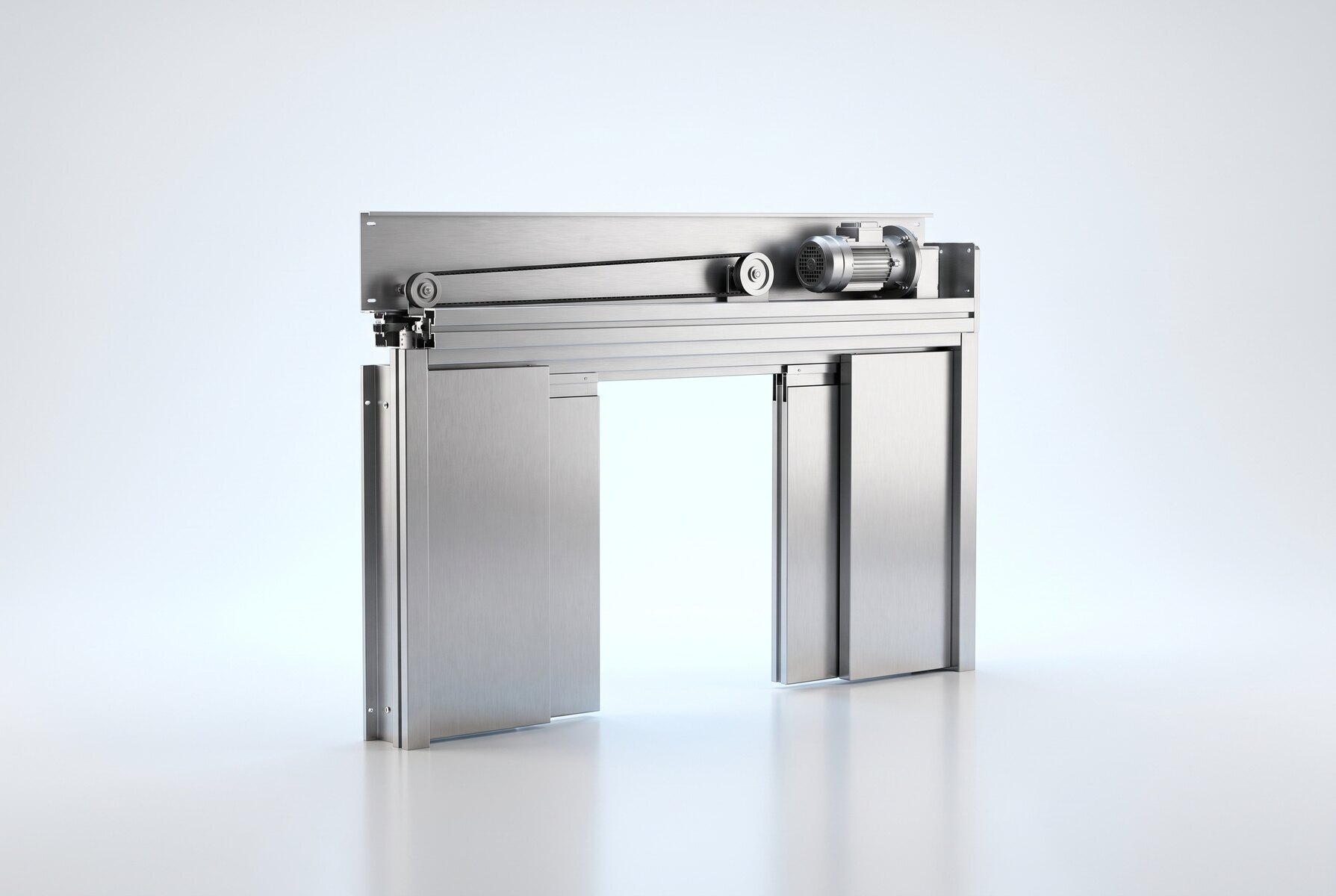

Doors
Automatic landing and car doors with light curtains.
Selected brand — top Italian/European
Reliable Italian components, manufactured by Movilift partners
Every Movilift lift pairs our in-house controllers, electronics and cabins with drive, door and safety subsystems produced by selected Italian partners. One integrated supply chain means consistent quality, easy installation, EN 81 compliance and long-term spare-part availability.
The lifts that don't fit the catalogue
Most of our work starts where a standard product stops: a shaft that's too small, a pit that can't be dug, a controller that has to talk to something unusual. We design around the constraint instead of asking you to change the building.
Reduced dimensions
Cars and shafts built to the millimetre for existing stairwells, courtyards and retrofits — including sizes outside the standard tables.
Reduced pit and headroom
Solutions for shallow pits and low headroom, engineered to EN 81-21 with the safety spaces and certification the installation requires.
Custom controllers
Control panels adapted to the plant: special signalling, non-standard drives, integration with existing systems and dedicated logic.
Send us the shaft drawing: we'll tell you what's feasible.
